1000kN Stainless Steel Anchor Rods

Name: 1000kN Stainless Steel Anchor Rods
Brand: SupAnchor
Price: 1 USD

China 1000kN Stainless Steel Anchor Rods wholesale

Brand Name : SupAnchor

Model Number : SST52/1000

Certification : ISO, SGS, ITB, IBDIM

Place of Origin : Jiangsu, China

MOQ : 3 meters

Price : 1 - 30 USD

Payment Terms : L/C, T/T

Supply Ability : 200,000 meters per month

Delivery Time : 1 to 6 weeks

Packaging Details : Packed in bundle with package paper.

Name : SupAnchor SST52/1000 Stainless Steel Anchor Rod

Thread Type : T International Standard / Left or Right

O.D. (mm) : 52

Ultimate Load (kN) : 1000

Unit Weight (Kg/m) : 8.40

Yield Load (kN) : 800

Cross Sectional Area (mm2) : 1,070

Lengh (m) : 2/3/4

Contact Now

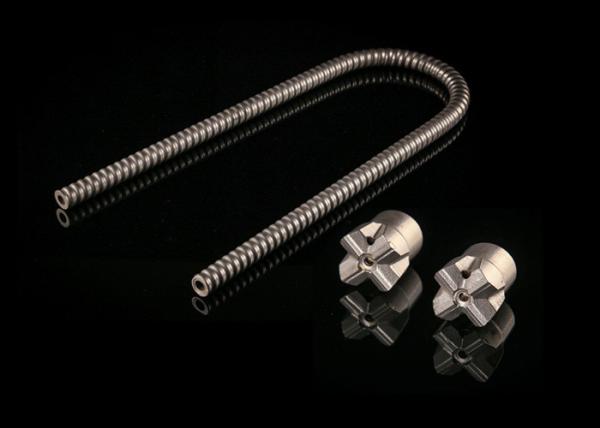

52mm Diameter Self Drilling Soil Nail Drilling Stainless Steel Hollow Anchor Rods SST52/1000

Features

SupAnchor stainless steel anchor rod is suitable for both geotechnical and structural applications. It is developed for permanent applications requiring higher levels of corrosion resistance than standard structural steels.

The system enables drilling and grouting in one operation, making much saving in jobsite and project time.

High corrosion resistance
Tensile Strength (N/mm2 ) >= 1000 N/mm2
100+ year service life

Advantages

Proven high bond strength
Superior ductility for seismic activity
High strength thread
Unique corrosive resistant
2m to 4m standard lengths

Applications

Tunneling & mining
Coastal defence walls
Foundation
Docks and harbours
Soil nails
Building and bridge cross ties
Slope protection

Technical Data

Stainless Steel Injection Bar	SST30/ 320	SST40/ 540	SST40/ 660	SST40/ 800	SST52/ 930	SST52/ 1000	SST52/ 1250


Ultimate load (kN)	≧320	≧540	≧660	≧800	≧930	≧1000	≧1250
Yield load (kN)	≧260	≧430	≧525	≧630	≧740	≧800	≧1000
Tensile Strength (N/mm2 )	≧1000	≧1000	≧1000	≧1000	≧1000	≧1000	≧1000
Outside Diameter (mm)	30	40	40	40	52	52	52
Cross sectional area (mm2)	356	573	700	828	993	1070	1299
Weight (kg/m)	2.80	4.50	5.50	6.50	7.80	8.40	10.20
Thread type	T International Standard / Left or Right
Length (m)	2002/3/4	2002/3/4	2002/3/4	2002/3/4	2002/3/4	2002/3/4	2002/3/4

Type of Stainless Steel	304 / 316	304 / 316	304 / 316	304 / 316	304 / 316	304 / 316
Chemical composition .%	Cr	Ni	C	Si	Mn	P	S
304 Stainless steel	18.0 - 20.0	8.0 - 10.5	≦ 0.08	≦ 0.75	≦ 2.0	≦ 0.045	≤ 0.030
316 Stainless steel	16.0 - 18.0	10.0 - 14.0	≦ 0.08	≦ 1.0	≦ 2.0	≦ 0.045	≤ 0.030
