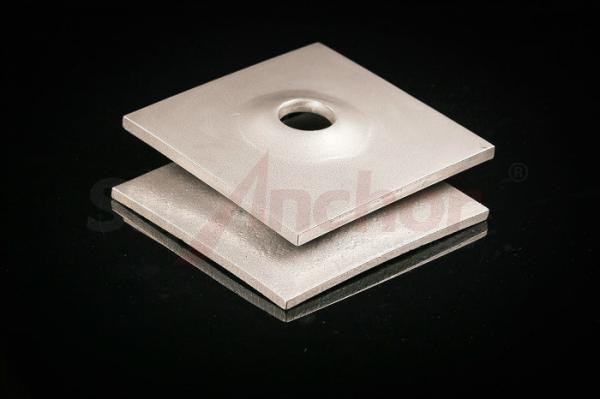

Self Drilling Anchor Bar R25 square plate for bar anchoring 150 x 150 x 8 mm
Features
SupAnchor® self drilling anchor system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time. The bearing plates are forged steel plates with a center hole, allowing articulation of seven degrees in all directions.
Applications
1. Mining
2. Radial systematic anchoring
3. Foundation for avalanche protect
4. Stabilization of tunnel portals
5. Tunneling
6. Spilling
7. Root piling
8. Face stabilization
Technical Data
| Anchor Plate | R25 |
| Size (mm) | 150 x 150 |
| Thickness (mm) | 8 |
| Hole Diameter (mm) | 30 |
| Unit Weight (kg) | 1.40 |
| Options of Anti-corrosion | Hot-dipped Galvanization / Epoxy Coating / SupCoat
*Hot-dipped Galvanization: ISO 1461. *Epoxy Coating: Bending properties up to standard ISO 1519; Impact properties up to standard ASTMD 2794; Adhesion up to standard ISO 2409:2007. *SupCoat: HDG + EC |
Anchor Bar and Accessories
Job sites
SubNumbers
10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.
20 Years - 20 years of exporting experience, familiar with different product standards from different
customers and countries.
26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar
manufacturer in Asia.
60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by
customers from 50 countries all over the world, including America, Chile, Germany,
Australia India, etc.
1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.
Quality System
QC Procedure
SupAnchor
has its own quality tracking systems. Every batch of anchor bar has its unique batch number, which can be tracked from raw materials till installation.
Being the No.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
Quality Inspection Rate
| Mechanical strength test ratio | >= | 3% |
| Dimensions test ratio | = | 100% |
| Surface inspection ratio | = | 100% |
