Features
SupAnchor Owning wholly two production premises in Eastern and Western of China, 45,000m² of land, totally 15,000,000 meters of production capacity, 26 years of manufacturing and 20 years of exporting experiences.
Rock drill bits can be used under any rock drilling condition, it's hardly impacted by the model of drill rig and the rock performance. Cross bit and button bit are mainly used for fissural rock. It is mainly used for diging into mine laneway and blasting holes in all drilling works for different rock, different alloy could extend the working life of the drill bits.
Features and Advantages
- Cost effective
- Welding is firm
- High bending strength
- High discharge efficiency
- Well drilled
Technical Data
| R38 Drill Bit | EW | EC | ECC | EY | EYY |
 |  |  |  |  |
| | Clay Bit for clay sand, loose ground & fill | Hardened Arching Bit for unconsolidated rock with boulders | TC Arching Bit for soft to medium rock formations | Hardened Drop Centre Bit for fills | TC Drop Center Bit forcompetent ground & strong rock |
| Outside Diameter (mm) / Unit Weight (Kg) | D76 / 0.73 D90 / 0.83 D100 / 1.00 D110/ 1.15 D115/ 1.20 D130/ 1.83 D150/ 2.80 | D76 / 1.15 D90 / 1.45 D115/ 2.60 | D76 / 1.19 D90 / 1.60 D110 / 2.45 D115/ 2.80 | D76 / 0.85 D90 / 1.06 D115 / 2.30 D130/ 2.75 | D76 / 1.05 D90 / 1.32 D115 / 2.05 |
| Hardness | HRC 43-48 | HRC 43-48 | HRA 87-89 | HRC 50-55 | HRA 87-89 |
| Thread Type | ISO 10208 - R38 / Left or right |
| Type of Steel | EN10083-3/2006 |

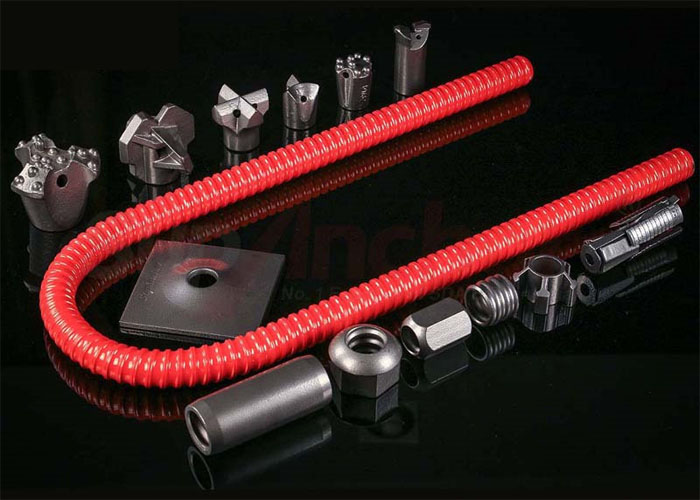

Anchor Bar and Accessories
Job sites
SubNumbers
10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.
20 Years - 20 years of exporting experience, familiar with different product standards from different
customers and countries.
26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar
manufacturer in Asia.
60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by
customers from 50 countries all over the world, including America, Chile, Germany,
Australia India, etc.
1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.
Quality System
QC Procedure
SupAnchor
has its own quality tracking systems. Every batch of anchor bar has its unique batch number, which can be tracked from raw materials till installation.
Being the No.1 exporter of SDA bars in Asia, quality control has been always SupAnchor’s biggest concern. Our quality testing equipment number ranks first on the list in anchor manufacturing industry
in Asia. It is SupAnchor’s mission to support your construction with products of high quality.
|
|
R38 Soil Nailing Hardened Arching Bit EC Type Self Drilling Anchor Bar R38 Images
|
